    제품소개 UpanelS

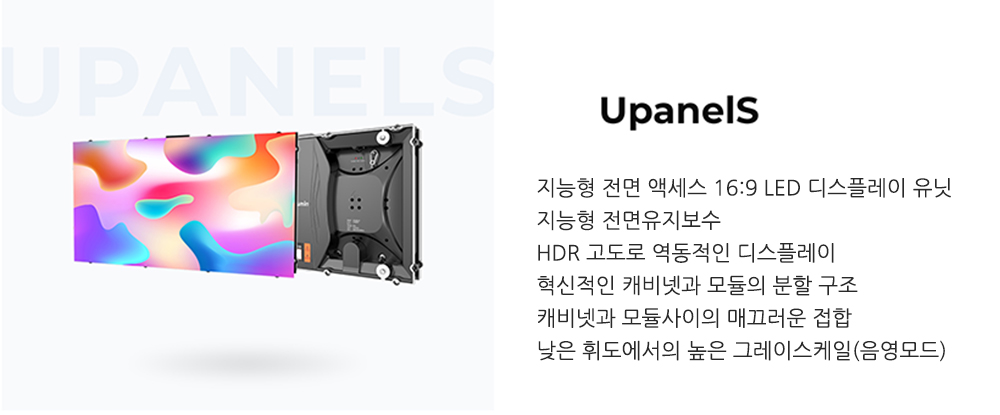

    UPanelS

    지능형 전면 액세스 16:9 LED 디스플레이 유닛



    UpanelS는  지능형 전면 액세스 16:9 LED 디스플레이 유닛




    Ultra thin, light and fast installation.



























    Application



    [ Conference ]

    [ Control room ]

    [ Home ]

    [ Showroom ]

    Specifications

    INDOOR


    SPECIFICATIONS Upanel 0.95 Upanel 1.25 Upanel 1.55 Upanel 1.95 Upanel 2.55
    Pixel Pitch(mm) 0.9 1.2 1.5 1.9 2.5
    Pixel Density(dots/m²) 1,101,068 620,001 396,550 275,267 155,000
    Panel Size(WxHxD) 609.92mm x 343.08mm x 71mm
    Panel Resolution (dots) 640 x 360 480 x 270 384 x 216 320 x 180 240 x 135
    Material Die-cast Magnesium Aluminum
    Brightness(cd/m²) 600
    Color Temperature 2,000 - 9,500K Adjustable
    Viewing Angle (H/V) 160° / 160°
    Panel Weight 6.8 kg
    Aspect Ration (W:H) 16 : 9
    Service Access Front
    Operating Temperature/Humidity -10°C to 45°C/10% - 80% RH
    Storage Temperature/Humidity -20°C to 55°C/10% - 85% RH
