    제품소개 USTRIP

    USTRIP

    Window Signage

    USTRIP은 통풍구조의 초경량 디스플레이 제품 으로 Store Sign, Window Sign,
    Street Sign, Building scene lighting등 다양한 분야에서 적용되는 획기적인 광고매체 입니다.







    Specifications

    SPECIFICATIONS Ustrip16 Ustrip25 Ustrip31.25 Ustrip50
    Pitch(mm) 16 25 31.25 50
    Pixel Configuration 1R1G1B 1R1G1B 2R2G2B 4R3G3B
    Brightness(cd/㎡) 7000 7000 7000 5000
    LED Type DIP346
    Optimum Viewing Angle H:110° V:60°
    Physical Density(dot/㎡) 3600 1600 1024 400
    Strip Module Size(mm) 10x1500x22 10x1500x22 16x1500x24 24x2000x24
    Cabinet Size(mm) 500 x 1500 500 x 1500 500 x 1500 800 x 2000
    Cabinet Weight(kg/sqm) 16 12 15 49
    Power Consumption(Max/Ave)(W/panel) 480 / 150 280 / 85 260 / 80 396 / 132
    Transparency 40% 60% 48% 50%
    Driving Method Static
    Material Aluminum
    IP Rating IP65
    OperatingTemperature/Humidity(℃/RH) -20C~50℃/10%~90%





    USTRIP Detail

    Key Feature

    Ultra light

    63% Lighter than traditional LED display.

    Save Maintenance Cost

    High waterproof/robust support frame/all weather operation

    Save Labor Cost

    Easy installation.

    Ensure Security

    All Weather Opreating(Rain/Thunder streak/Sand storm/Snow)

    Save Power

    1/3 Average power consumpthin of the traditional.

    Adapt to your project

    Curving Installation/Strong Adaptation/Customized Size

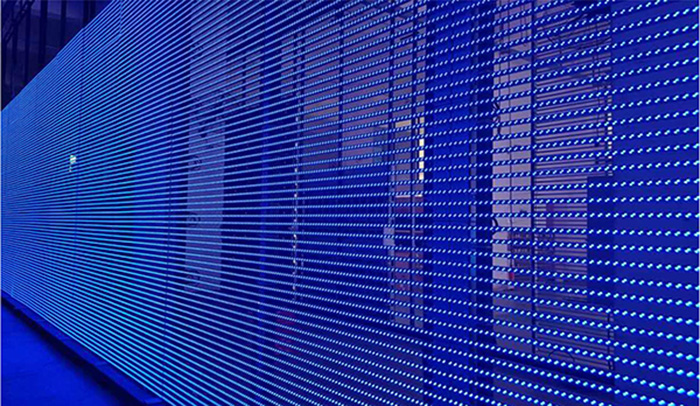

    [시공 사례]
