    제품소개 UGLASS

    UGLASS

    Window Signage

    UGLASS는 투명 LED PANEL Show window용 광고 매체로 창문을 이용한
    기업이미지 광고 및 상품광고 효과에 탁월합니다.




    Turning LED on Full color

    Application

    Show window advertising, Image advertising, Building scene lighting



    [Image advertising]

    [Image advertising]

    [Show window]

    [Show window]

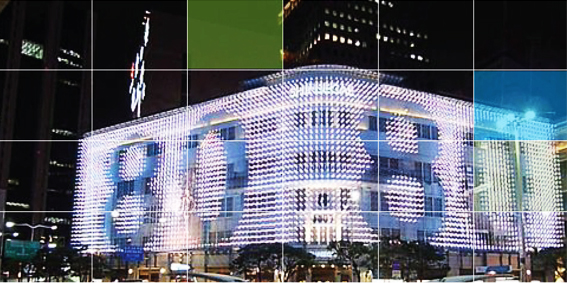

    [Building scene lighting]

    [Building scene lighting]

    Specifications

    SPECIFICATIONS Uglass10i Uglass10 Uglass16 Uglass20
    Pitch(mm) 10 10 16 20
    Brightness(nits) 1500 6000 4500 6000
    LED Encapsulation SMD3528 SMD3535 SMD3535 SMD3535
    Optimum Viewing Angle H:120° V:100° H:120° V:100° H:120° V:100° H:120° V:100°
    Panel Size(mm) 320 x 960 320 x 960 480 x 768 320 x 960
    Panel Resolution 32 x 96 32 x 96 30 x 48 16 x 48
    Cabinet Weight(kg/sqm) 16.5 17 15 16
    Power Consumption(Max/Ave)(W/sqm) 450 / 150 850 / 260 650 / 200 850 / 260
    Transparency 64% 64% 75% 80%
    IP Rating 30 30 30 30
    Input Power(Average/W) 150 260 200 260
    Refresh Rate(Hz) 1920 1920 1920 1920
    OperatingTemperature/Humidity 10~40/10~90%RH





    UGLASS Detail

    Key Feature

    High Transparent Rate

    80%이상의 높은 창문 투과율을 보입니다.

    High Simple & Light

    창문 점용공간 10mm / LED 무게 13kg/㎡



    [시공 사례]

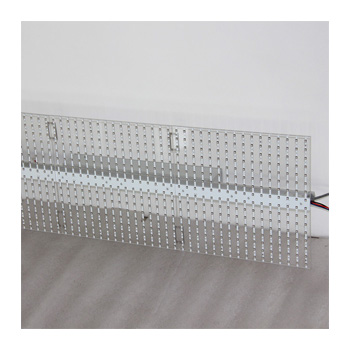

    UGLASS Tile
    Transparency
    Slim, light and Beauty
